Tier 1 · Applications

Animation

AnimHub

dcc/maya/animation/animhub/main_window.py — CFAnimHubWindow (WINDOW_OBJECT_NAME = "CF_AnimHubWindow"), launched from Animation > AnimHub. The clip/take manager and FBX export pipeline — the largest application in the suite, and a clean-room reimplementation of an animation-clip workflow, informed by years of real production use of a previous, unrelated pipeline rather than a port of its code.

Its Maya-menu/QuickLaunch icon sits next to its launcher module (see Menu discovery) — the in-app window itself doesn't set its own window icon.

Sync with Time Editor, the Bookmark Editor, and Game Exporter is deliberately one-shot, not live - each direction is an explicit, user-triggered action, never a background link that could silently drift out of sync.

Core concept: what a clip is

A clip is a named window into Maya's single shared timeline — start/end mark a frame range on the one timeline every clip shares. It is not a separate animation layer, and not a separate file per clip. This distinction matters everywhere in the app: pushing a clip to the Time Editor, baking anim layers, and exporting FBX all operate on "this range of the one timeline," not on any kind of isolated take container.

Clip data model

A clip lives on a native Maya network node carrying a set of CF_Clip* attributes (schema.py), applied generically by a declarative AttrSpec table (same pattern as character/schema.py) — adding a field means editing that table, not hand-writing another cmds.addAttr call.

Corner toolbar

Five icon-only buttons sit in the menu bar's own top-right corner — left to right: Character Panel toggle, Clip Style cycle, Preview toggle, Clip Previewer launch, and Ask AI.

Character Panel

Shows/hides the character hierarchy panel under the menu bar - same toggle as Characters > Display Character Panel.

Clip Style

Cycles every row between Optimized, Compact, and Preview - see Clip row anatomy below.

Preview Toggle

Enables/disables the ambient hover-preview popup for the whole window - see Hover preview popup.

Clip Previewer

Opens the standalone gallery window - see Clip Previewer (gallery window).

Ask AI

Opens the shared AI Companion, bound with AnimHub's own curated API - see AI Companion integration.

Clip row anatomy

clip_row_widget.py's ClipRowWidget is the single most-interacted-with piece of UI in the app — one instance per clip, rebuilt from scratch on every filter/sort/refresh (not diffed/reused). It's one parametrized class covering all three row styles, not three separate widget files — AnimHub has no legacy-file-pairing constraint forcing a split the way some ported UIs do.

ClipRowWidget(clip, style="optimized", initial_expanded=False, parent=None)

Signals: changed() (any field write), filterRelevantChanged() (only for edits that could move the row in/out of the current filter/sort — checked, name, status; deliberately not fired for start/end, since a spin box fires per-keystroke while focused and rebuilding the row list mid-edit would yank focus away), expandedChanged(clip, bool), duplicateRequested(clip), deleteRequested(clip), exportRequested(clip) (export just this one clip, regardless of its checked state).

The three styles

• Optimized — single-line collapsed header: check glyph, expand chevron, color-dot, sync button, name field, start/end spin boxes, an export button. No status pill until expanded.
• Compact — two-line collapsed header (built for long names): row 1 is checkbox + full-width name + export button; row 2 is color dot, sync, start/end, a status pill, and the chevron.
• Preview — the compact header's two-line layout, minus the status pill (freeing that space), plus a persistent small thumbnail (thumbnail_render.HoverPreviewThumbnail) docked at the row's right edge. Hovering that thumbnail always animates the captured frame sequence in place — independent of the ambient hover-popup setting described below, since the two would otherwise compete for the same hover.

Optimized

Maximum density - one clip per line, nothing but the fields you need to scrub and check off a long list quickly.

Compact

Trades density for readability - a full-width name field for long clip names, and the status pill visible without expanding the row.

Preview

Swaps the status pill for a persistent thumbnail - built for visually scanning a list once clips actually have captured preview frames.

Expanded body (same for all three styles, toggled by the chevron): three sections, each its own QGroupBox with an explicit dark background (a bare QGroupBox is transparent, and the row's own status-tinted gradient would otherwise bleed through it):

• Characters — one row per export-character slot (character_export_row.py, see Clip data model), plus an "Add Character" row (combo of not-yet-added scene characters + button).
• Animation Layers — read-only Enable:/Disable: summary plus an "Edit Layers..." button opening ClipAnimLayerAssignDialog (see below).
• Export Options — Export Curve Data / Export Head Curves (disabled unless curve data is on) / Loop checkboxes, plus an override-path field + browse button.
• An actions row at the bottom: (Optimized/Preview only, since those styles' headers have no room for it) a status pill, then Capture Preview / Duplicate / Delete.

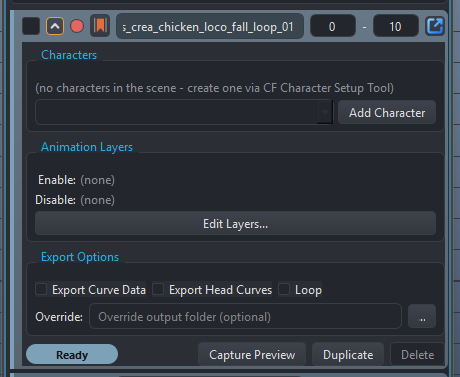

Expanded

All three sections at once, plus the actions row - Ready status pill, Capture Preview / Duplicate / Delete.

Current-clip highlighting

Driven externally, not by anything inside the row itself: the main window registers a timeChanged scriptJob and, on every fire, calls widget.set_current(widget.clip.start <= cur <= widget.clip.end) on every visible row. set_current() just flips a flag and re-tints the card — there's no scriptJob or timer living inside ClipRowWidget itself. "Current" overrides the status-color tint outright (not blended), so it's unmistakable rather than competing with the status signal — matching the same precedence the interaction pattern this was adapted from uses.

Ctrl-drag scrub / Alt-click play-once

A custom event filter installed on the row and every direct header child widget — explicitly excluding anything inside the expanded body, since the body's sections rebuild their children dynamically (a filter installed once at construction would go stale) while header widgets never change identity after construction.

• Ctrl+click-drag on the header scrubs: syncs the timeline to the clip's range, then converts horizontal mouse movement to frame movement (4 pixels per frame), clamped to the clip's own start/end.
• Alt+click syncs the timeline and plays once (cmds.playbackOptions(loop="once") + cmds.play(forward=True)).

Hover preview popup

For Optimized/Compact rows (Preview style has its own always-on thumbnail instead): once the corner toolbar's Preview Toggle is enabled, hovering any row starts a delay timer (Settings > AnimHub > Interface's preview delay, default 1200ms), then shows a small floating ClipPreviewPopup (clip_preview_popup.py) near the cursor, animating back through the clip's own captured preview frames right where the cursor is — a quick way to check what a clip actually looks like without scrubbing the timeline or leaving the row list.

Hover playback, triggered

Preview Toggle (highlighted, corner toolbar) is on, so hovering as_crea_chicken_loco_fidget_01 pops the cached preview frames right over the row — no scrubbing or opening a separate window needed.

Playback speed itself is also a live, user-adjustable setting rather than a hardcoded frame rate — see Clip preview thumbnails below for the fps default and how it's applied. A second watchdog timer polls whether the cursor is still actually over the row every 250ms — a deliberate backstop, since Enter/Leave events aren't always reliably delivered crossing child widgets, or into Maya's native viewport. The same watchdog-poll pattern is used independently by the gallery tiles in Clip Previewer for the same reason.

Assigning enable/disable layers

anim_layer_dialog.py's ClipAnimLayerAssignDialog(enable_names, disable_names, parent=None) — a three-column drag-and-drop shuttle (Disable | Available | Enable), distinct from AnimLayerBakeDialog (which bakes layers down before a Time Editor push; this dialog only assigns which layers get enabled/disabled at export time, never bakes anything). It has no knowledge of CFClip at all — purely two lists of layer name strings in, two lists out (.enable_layers() / .disable_layers()), so it's reusable independent of the clip row context. A layer name the clip already references that's no longer in the scene still round-trips through unchanged, marked "(not in scene)", rather than being silently dropped.

Status pill

status_chip.py's StatusChip(status, parent=None) — a small capsule button; clicking cycles Ready → InProgress → Ignore → Ready. Emits statusChanged(new_status) on a user click-cycle only (set_status() itself doesn't emit). Its label/color lookup tables are keyed by ClipStatus.value (a plain int), never the enum member object.

What the colors mean

Every clip row carries two coordinated color cues — a thin stripe down its left edge, and a subtle full-card background tint blended from that same color — so a row's state reads at a glance without needing to open it or read the status pill's text. Only one color ever wins: current-clip overrides status outright (see Current-clip highlighting above), it never blends with whatever status color was showing.

Driven by clip_row_widget.py's _refresh_card_style() — the stripe uses the color at full strength, the card background blends it into the row's normal gray gradient (theme.mix_color()) at a lighter ratio so the tint reads as a wash, not a solid fill.

That status tint is independent of the small round dot at the very left of each row - the dot is a per-clip custom color swatch (CF_ClipColor, set via "Set Color for Checked..." or clips.set_color()), not a status indicator. A clip can be Ready and carry its own custom dot color at the same time - useful for grouping clips visually by character, sequence, or any convention a team wants, on top of (not instead of) status:

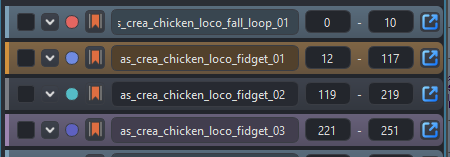

Custom color swatches

Four different clips, four different user-assigned dot colors - independent of whatever each clip's own status happens to be.

Time Editor integration

time_editor_sync.py — reads and writes Maya's own Time Editor clips, independent of any Time Editor panel being open (confirmed live: pure node/attribute queries via cmds.timeEditorTracks/timeEditorClip, no UI/panel state needed for reading).

Reading: TE → AnimHub

Tools > Sync Clips to Timeline Editor reads whatever's currently in the Time Editor and creates/updates matching AH clips by name. This is a one-time snapshot, not a live link — a later Time Editor edit has no effect on the AH clip until Sync is run again. Time Editor is treated as the source of truth for this direction.

TimeEditorSyncDialog(te_clip_count, existing_ah_clip_count, parent=None) is the options prompt: a label reporting how many Time Editor clips were found; if AH already has clips, a radio choice between Add/Update (default — merge into existing AH clips by name match) and Replace All (clears every existing AH clip first); and always a second radio choice between Keep Animation in Time Editor (default) and Bake Keys Back to Scene (restores real scene keyframes for the ranges just adopted, via timeEditorBakeClips, then removes the TE clips).

Writing: AnimHub → TE

Tools > Push Clips to Timeline Editor (push_clips_to_time_editor) creates one Time Editor clip per AH clip, all driven from a single timeEditorAnimSource built from the current selection — or, if nothing is selected, from every animated object in the scene (list_animated_objects(), which correctly traces through anim-layer blend-node chains to the real driven transform, not just immediate curve connections).

Hierarchy expansion: an explicit selection is expanded to include every descendant transform/joint (_include_hierarchy) before pushing. Without this, selecting just a rig's root and pushing left every child joint's keys untouched by the resulting clip's own retiming in the Time Editor.

Anim Layer check before push: if any selected object has a genuinely anim-layer-driven attribute, a dialog offers to bake the layers down first — see Anim Layer detection and baking.

Bookmark sync

Every AH clip gets a paired Maya timeSliderBookmark node (bookmark_sync.py), kept live-synced (name/start/end/color) on every edit to the clip — so Maya's own native Bookmark Editor and timeline ruler always reflect the current clip list.

A marker boolean attribute on every AnimHub-generated bookmark (is_ah_generated_bookmark()) lets other code (notably the one-shot bookmark importer) distinguish AH's own shadow bookmarks from a user's real, independently-created ones, robust even if the owning clip was later deleted outside the normal API.

If a bookmark already has an existing connection from some other tool (e.g. a legacy pipeline's own bookmark-driven navigation system) when AnimHub takes it over, that connection is force-broken rather than left in place — AnimHub always takes full ownership of a bookmark it's synced to.

Anim Layer detection and baking

anim_layer_bake.py — used before a Time Editor push (and available generally) to detect and optionally flatten anim-layer-driven animation.

• Genuine-layering detection: cmds.animLayer(addSelectedObjects=True) creates a blend node for every keyable attribute of an object regardless of whether that specific attribute is actually keyed on the layer. The real signal is whether the blend node's .inputB has an incoming connection — find_animlayer_driven_attrs() checks that, not mere blend-node presence, to avoid false positives.
• Multi-layer stacks: walks inputA repeatedly to find every layer in a stack, not just the topmost one — a real bug this fixes was a deeper locked layer going undetected because only the first blend node was ever checked.
• Locked layers: find_locked_layers() surfaces which genuinely-layered layers are locked, so the bake dialog can offer to temporarily unlock them (re-locking afterward, in a finally) rather than silently failing to bake a locked layer's contribution.
• Baking: bake_animlayers_for_objects(objects, start, end, unlock_layers=()) runs cmds.bakeResults(..., removeBakedAttributeFromLayer=True, removeBakedAnimFromLayer=True, ...), only unlocking (and later re-locking) exactly the layers it actually had to unlock.

animhub/anim_layer_bake_dialog.py (AnimLayerBakeDialog) is the CF UI for this: shows the affected attribute count and any locked layers, with a "temporarily unlock these layers for this bake" checkbox (unchecked by default), and Bake & Continue / Continue Without Baking / Cancel.

Scene retiming

scene_retime.py's normalize_start_to_zero(objects=None) shifts every keyframe on the given objects (or every animated object in the scene) so the earliest key lands at frame 0, in one pass over the underlying animCurve nodes — not per-object. This exists specifically because a naive two-pass approach (shift once via each object's own transform, once via the animCurve nodes directly) shifts the same underlying curve twice through two different paths, silently doubling the offset. This is exposed to the AI Companion as clips.offset_all_keys_to_start_at_zero() — see ClipsAPI.

Export pipeline

export_pipeline.py — given a clip and its export-character slots, resolves an output path, sets up scene state, and calls Maya's FBXExport.

Path resolution order (first match wins):

1. clip.override_path (a folder), if set — wins over everything.
2. The slot's own explicit path (a full file path).
3. Project-root convention: <project_root>/Animations/<CharacterExportName>/<CharacterExportName>_<ClipName>.fbx, via core.project.get_project_root().
4. If no project root resolves, Settings > AnimHub > Export's "Global export folder."
5. Last resort: <scene_dir>/fbx_export/<...>.fbx.

Settings > AnimHub > Export is also where tier 3's project root mode (Maya Project / P4 Workspace / Custom) is configured — it used to live on the generic Settings > Project page, but moved here since this export path resolution was always its only real consumer. It still reads/writes the exact same "project" config keys core.project.get_project_root() itself reads, regardless of which UI wrote them — only the control surface moved, not the underlying shared config.

Bake-at-origin (a character with bake_mode == BakeMode.ORIGIN): duplicates the export hierarchy, unparents it, parentConstrains the duplicate back to the original, bakes only the duplicate's root transform channels, deletes the constraint. This captures the original's real world-space motion into the parentless duplicate's local channels — it does not "zero the root," which would erase motion rather than re-origin it. Children keep their existing local (skin/rig-driven) animation untouched. World-mode characters (the default) export the real node directly, no duplication.

FBX flags: no input connections, no cameras/lights, no constraints/instances/smoothing groups, bake complex animation at step 1, split into takes.

File Type (ASCII/Binary) is a Settings > AnimHub > Export control too, defaulting to ASCII. This pipeline embeds real per-clip metadata onto the exported node (the Loop flag below), and ASCII keeps that inspectable/diffable the way this pipeline is meant to be used — switching to Binary shows a confirmation first (reverts to ASCII if declined) rather than silently changing it. Binary is still fully supported once confirmed.

Loop flag: clip.loop gets baked onto the exported node as a keyed boolean custom attribute (CF_Loop), keyed at both start and end (even though constant) because FBX's bake-complex-animation step only reliably exports attributes that actually have keyed animation.

Perforce: if P4 is available, add_or_checkout()s the output path before writing.

Entry points: export_clip(clip) (one clip, every enabled slot), export_clips(collection, force_all=False, on_progress=None) (batch — defaults to collection.checked(), or every non-Ignore clip if force_all=True).

Anim layer scoping at export

layer_manager.py maps a clip's enable_layers/disable_layers onto real animLayer mute state, scoped to just the layers named — every other layer's mute state is left untouched. If a layer name appears in both lists, disable wins (applied second, unconditionally). LayerScope(clip) is a context manager: snapshots every layer's mute state on enter, applies the clip's config, and restores the exact snapshot on exit (even on exception) — export_clip() wraps its whole per-character-slot export loop in this, so an export never leaves the scene's layer visibility changed afterward.

Clip preview thumbnails

clip_preview.py captures small (220x124) JPEG frame-sequence playblasts per clip for the hover-preview thumbnail — separate from any full-resolution review playblast. Requires the scene to already be saved (previews live at <scene_dir>/_previews/<clip_name>/) — the most common capture_preview() failure. Old frames are deleted before a new capture, so a shortened clip doesn't leave orphaned trailing frames from a longer previous one.

thumbnail_render.py composites a source frame into a rounded-corner thumbnail (compose_thumbnail_pixmap) — a QLabel stylesheet's border-radius only rounds the label's own background, not a pixmap drawn on top, so this does the rounding itself onto a real-alpha QImage. HoverPreviewThumbnail is the reusable widget (used both inline in a clip row and in the Clip Previewer's gallery tiles) that animates through captured frames on hover, sharing one playback speed with ClipPreviewPopup so nothing descended from either runs at a different cadence.

Clip Previewer (gallery window)

clip_previewer_window.py — CFClipPreviewerWindow, opened from Tools > Clip Previewer or the corner toolbar's dedicated launch button. A standalone dockable gallery view (search + group filter, a responsive grid of preview tiles) as an alternative to AnimHub's own text/field-dense row layout. Reads the same scene clips (model.ClipCollection) but is fully decoupled — neither window owns the other, and both read the same scene-level group registry so a group created in AnimHub's own Groups dialog shows up here automatically (this window can filter by group, not create/rename/delete one).

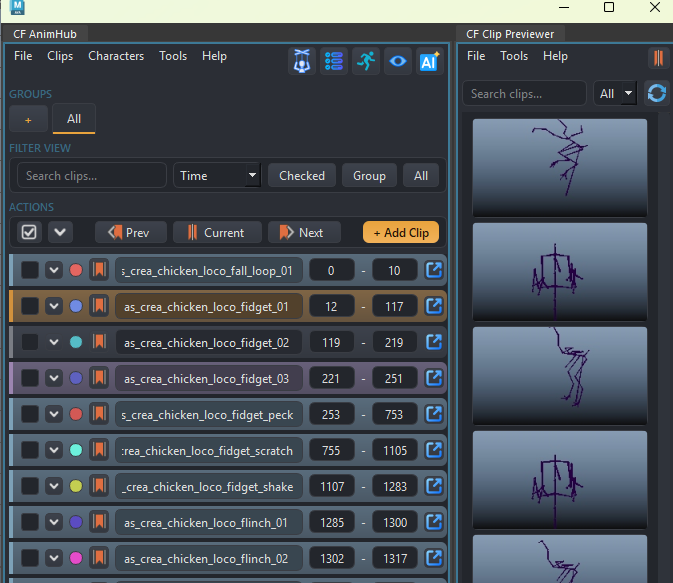

AnimHub + Clip Previewer, side by side

The Clip Previewer (right) is a separate top-level window, not a panel bolted onto AnimHub (left) — each tile mirrors one row's clip and renders the same captured preview frames as the row's own hover popup, just larger and always visible instead of appearing on hover.

Each tile is a ClipPreviewTile(clip, size, parent=None) (clip_preview_tile.py) — a bigger, click/right-click-driven sibling of the row's own "Preview"-style inline thumbnail, sharing the same thumbnail_render.HoverPreviewThumbnail rendering/hover-animation logic rather than reimplementing it. Left-click emits syncRequested if the clip already has a preview, or generateRequested if not ("click to generate"); right-click offers Sync Take / Generate Clip Preview / Delete Preview (shown-but-disabled without a preview) / Export (calls export_pipeline.export_clip directly).

This window's own Tools menu also has scene-wide "Generate Missing Previews" / "Delete All Previews" — the same two actions AnimHub's own Clips > Clip Preview submenu offers, operating on the same collection either way. Both always operate on the entire scene collection regardless of the current search/filter, so a maintenance sweep's definition of "all" doesn't silently depend on whatever's typed in the search box.

The grid's column count recomputes on every resize based on the actual scroll-area width — a wide floating window shows several tiles per row, a narrow docked panel collapses to one column.

Groups

Clips > Manage Groups opens ClipGroupsDialog (groups_dialog.py) — a three-column shuttle (All Clips | Groups | Clips in Group) for creating/renaming/deleting groups and managing membership, with independent filters per column. Every action writes through immediately, same live-write convention as the rest of the app. "All" is reserved and can't be used as a group name. Deleting a group only removes clip membership in it — clips themselves are untouched.

Remember the two-layer model from Clip data model: this dialog is the only place group registration (what makes a group a real, orderable tab) happens — tagging a clip's CF_ClipGroups elsewhere (including via ClipsAPI.add_to_group()) never creates the tab by itself.

Batch rename

Clips > Batch Rename (batch_rename_dialog.py) — prefix, suffix, find/replace (literal or regex), and optional zero-padded sequential numbering. Operates on checked clips if any are checked, else every clip. The core renaming logic, apply_rename(name, index, params), is a pure function with no widget/clip dependency — order of operations is find/replace first, then prefix+name+suffix, then (if enabled) the sequential number appended last. Invalid regex is caught and silently no-ops for that clip rather than raising.

Clip Shuttle (floating nav bar)

Tools > Clip Shuttle (clip_shuttle_dialog.py) opens a small, frameless, translucent, always-on-top pill mirroring the main window's Prev/Current/Next/Checked/All actions, so you can scrub clips without the full AnimHub window in the way. It's a thin remote control — every button delegates straight to the owning main window's own methods, it doesn't reimplement any nav/range logic itself. Non-modal (.show(), stays open alongside the main window).

Import/export clip metadata

File > Import/Export Clips (clip_io.py) snapshots/restores clip metadata (name, range, status, checked, color, groups, layers, loop, curve-data flags, override path) to/from a plain JSON file — distinct from FBX export, which writes animation data, not this app's own bookkeeping. Import matches an existing clip by name only (no uuid/node matching) — creating a new clip if no name match is found, otherwise updating the existing one's fields in place. Renaming a clip between an export and a later import will create a duplicate rather than update the original clip.

Background (headless) export

Tools > Export Clips FBX on Background launches tools/headless_export_clips.py as a genuinely separate mayapy subprocess (not Maya's own background evaluation) via QProcess, streaming output into a live console and a timestamped log file. The scene must already be saved (you're prompted to save first). The headless script opens the saved scene fresh, exports every checked clip (no force_all option here), and writes a JSON results summary the main window reads back for a final success/failure dialog.

One-shot bookmark import

Clips > Import from Bookmark Manager... (tools/sync_clips_with_bookmarks.py) is a one-directional, one-shot migration utility: reads every real timeSliderBookmark in the scene and creates a new AH clip for any that don't already match an existing clip by name, best-effort copying the bookmark's color too. It explicitly skips AnimHub's own generated bookmarks (via bookmark_sync.is_ah_generated_bookmark()) to avoid re-importing AH's own shadow bookmarks as duplicate clips. This is not an ongoing sync — re-running is safe (already-matched names are skipped), but nothing here keeps bookmarks and clips linked afterward.

Each newly created clip adopts the bookmark it was imported from (bookmark_sync.adopt_bookmark_for_clip()) rather than getting its own brand-new one. CFClip.create() (used internally by collection.add()) always makes its own bookmark unconditionally via ensure_bookmark_for_clip() — without the adopt step, that left two identical-looking bookmarks (same name/range) sitting side by side in Maya's own Bookmark Manager after every import, a real reported bug. The redundant auto-created one is deleted immediately after the real one is adopted.

Game Exporter integration

Tools > Game Exporter > Import Clips from GE / Push Clips to GE (game_exporter_sync.py) — one-shot, one-directional syncs with Maya's own built-in Game Exporter (Windows > Animation Editors > Game Exporter), matching the same non-live convention as the bookmark import above.

Import Clips from GE reads the first gameFbxExporter node found in the scene and creates a new AH clip for every entry whose name doesn't already match an existing clip — same skip-on-collision convention as bookmark import. No node in the scene yet means nothing to import (not an error).

Push Clips to GE opens a small dialog (GameExporterPushDialog) asking which clips to push — All Clips (the default) or Checked Clips. Each pushed clip is matched into the Game Exporter's list by name — an existing entry's range is updated in place, a new one is appended otherwise, so re-running is idempotent and never creates duplicates. If no gameFbxExporter node exists yet, one is created (named CF_GameExporterPreset, forced onto the Animation tab) — an existing node's own export-type setting is left alone. If the Game Exporter window happens to be open already, its own clip list view is refreshed afterward.

AI Companion integration

Tools > Ask AI opens the shared AI Companion panel and binds it with two objects scoped entirely to AnimHub's own domain, plus a "concepts primer" describing how to use them — full reference in ClipsAPI. The AI never gets raw, unrestricted access to the scene here: it can only act through these two curated, tested surfaces, and even then only after a human reads the proposed Python and clicks Run.
