Tier 1 · Applications

Utilities

Batch

dcc/maya/batch/main_window.py — CFBatchWindow, launched from Utilities > CF Batch. A file-agnostic batch runner: queue any files, stack tagged (and AI-authored) scripts against them, run. CoreTools' own clean-room batch-processing implementation — queueing, module stacking, JSON templates, source-folder favorites.

Core concept: three independent things

A batch run combines three things that don't have to relate to each other at all:

• Files — any file type, or none. Batch never opens, inspects, or assumes anything about a queued file; it's just a string handed to whichever script asks for it.
• Pre-process scripts — run once each, before anything else, file_path=None.
• Per-file scripts — run once per queued file (or once with file_path=None if the file queue is empty — useful for scene-agnostic operations, like generating a report or cleaning stale temp files).

Nothing here ever auto-opens a Maya scene — a deliberate, load-bearing design decision. Batch's own runner (runner.py) just calls main(file_path, **input_variables) — a script that wants a scene open calls cmds.file(file_path, open=True, force=True) itself. See Scripts/Maya/OpenScene.py, which exists as an explicit, queueable first step for exactly that reason. This is also what makes the tool genuinely file-agnostic: the same queue can hold Maya scenes, FBX files, videos for the FFmpeg script, plain text files, or nothing at all.

Script contract

A script is any .py file under a library root (Scripts/ next to main_window.py, or a folder added via ScriptLibrary(roots=[...])). Folders become path segments in its display path (e.g. FFmpeg/ConvertVideo) — what the UI, the queue, and templates all address it by.

tool_tip = "One-line description shown in the Properties panel."

tags = ["ffmpeg", "video", "convert"]   # optional - see Tags below

input_variables = {
    "amount":   {"type": "int",       "default": 1},
    "label":    {"type": "string",    "default": "", "placeholder": "..."},
    "enabled":  {"type": "bool",      "default": True},
    "mode":     {"type": "choice",    "default": "A", "choices": ["A", "B"]},
    "ratio":    {"type": "float",     "default": 1.0, "decimals": 2},
    "code":     {"type": "plaintext", "default": "", "min_height": 120},
    "out_dir":  {"type": "folder",    "default": ""},
}

def main(file_path, **kwargs):
    ...
    return True   # False fails the run; an exception fails it too and is logged

Seven recognized input_variables types, one dedicated Qt widget each (main_window.py's _build_input_control()); anything unrecognized falls back to a plain string field. "folder" is a text field + Browse... button opening a real folder picker, for exactly the output_directory-style fields several shipped scripts already have. Raise runner.ScriptSkipRemaining(reason=..., skipped_by=...) from inside main() to abort the rest of that file's remaining scripts and move on to the next file — it never aborts the whole run. A script with no main() fails to load with a clear error the moment the UI touches it (tooltip, properties panel, or a run attempt).

Main window tour

Three-column body over a file queue — Source Files / Script Library / Properties — simplified in one place (documented in main_window.py's own module docstring):

• Source Files (left) — a source path field with a favorites star, Browse, a Sub-folders checkbox, and Refresh, feeding an OS-style folder tree (when Sub-folders is checked; a flat one-level listing if not) with real file/folder icons via QFileIconProvider. Lazily populated like a real file browser — a folder shows a dummy-backed expand arrow the moment it's discovered, and its actual contents are only scanned the first time it's expanded, not an eager recursive os.walk() of the whole tree up front. Folder branches aren't selectable themselves, so multi-selecting always yields real files. Add to Queue moves the selection into the Batch Queue below. On a completely fresh setup (no source path ever saved), the field starts at the current project root (core.project.get_project_root(), the same one Settings > Project resolves) instead of empty — a deliberately-cleared path stays empty on the next launch, since that's a real user choice, not the same as "never configured."
• Script Library (middle) — a search/tag-filtered tree, grouped by the script's own folder (see Script library tree), feeding either stack tab via Add to Stack or a double-click. The Script Queue tab is the default, active one; Pre-Process is hidden behind a left-aligned Show Pre-Process checkbox above the tabs (unchecked by default and persisted) — most stacks never use Pre-Process at all. Double-click a stack entry to give it a short note (see Queue entry notes). Each tab's own ordered stack has a checkbox per entry (the enable/disable toggle), Move Up/Down, Remove, and a context menu (Edit Note... when right-clicking an entry / Enable All Scripts / Disable All Scripts / Clear Stack / Save Module Stack / Save Module Stack As... / Load Module Stack... — see Module stacks, not the whole-queue Save/Load Queue below).
• Properties (right) — two modes, whichever list you clicked last: single-click a library script for a read-only preview of what it does, or select a stack entry to edit its live input_variables (autosaved on every change). See Properties panel.
• Batch Queue (bottom) — a Saved queue search-as-you-type dropdown + Save button (the whole-bundle kind — see Named queues), the file list (right-click a queued .ma/.mb file for Preview Clips... — see Preview Clips), Remove Selected / Clear, Process Queue (progress bar tracks each script × file step as it runs), and Open Logs Folder.

A real File menu (Save Queue / Save Queue As... / Load Queue... / Close) and a separate Modules menu (Save Module Stack / Save Module Stack As... / Load Module Stack...) sit above the toolbar, with the AI icon button as the menu bar's own corner widget (QMenuBar.setCornerWidget()) — the same mechanism CF AnimHub's own menu bar uses for its corner buttons, not just a visually-similar top-row button. See AI Companion integration.

Script library tree

The library browser is a QTreeWidget, one top-level branch per top-level script folder — Scripts/Maya/* groups under a "Maya" branch, Scripts/FFmpeg/* under "FFmpeg", Scripts/AnimHub/* under "AnimHub", and so on, mirroring ScriptLibrary.refresh()'s own recursive folder walk (model.py) exactly — the UI doesn't discover anything the model didn't already find, it just presents that structure as a tree instead of a flat list. Folder branches aren't selectable or queueable themselves (only leaf scripts are); double-clicking or Add to Stack on a leaf adds it to whichever stack tab is active.

Typing in the search box or picking a tag filters by hiding non-matching leaves — a folder with every child hidden hides itself too, so a folder still showing means at least one of its scripts matches. The tree expands fully on every refresh.

Tags

Two sources, unioned: a script's own module-level tags list (ships with the file, read-only from the UI), and a per-user JSON sidecar (tags_index.json, outside the library root on purpose — tagging a shared or version-controlled script never means editing that file). Right-click a script in the library > Edit Tags... to add your own. The search box and the tag dropdown both filter against the union (ScriptLibrary.search()), and it's the same call BatchAPI.search_scripts() uses for the AI.

Same right-click menu also has Rename... (ScriptLibrary.rename_script() — renames the underlying .py file in place, same category folder, with the same sanitize-and-uniquify protection new_script_path() gives an AI-authored name; tags carry over to the new display path) and Browse to Script (opens Explorer with the file selected, via explorer /select,). Renaming a script that's already queued (either stack) migrates every matching QueueEntry.script_path to the new display path too, so an in-progress queue never silently points at a script that no longer exists under its old name.

Favorites

Quick jumps for the source folder (left-click the star to jump, right-click to add/manage). Favorites are stored as a real list (core.config.UserConfig, a flat value CoreTools' own config layer round-trips cleanly), not a comma-joined string — a folder path containing a comma can't silently corrupt the list here. Manage Favorites (right-click > Manage Favorites) opens a small dialog (favorites_dialog.py) — Move Up/Down/Remove, saved immediately on every change, no separate OK/Cancel.

Properties panel

One panel, two modes — whichever list you clicked last decides which mode shows:

• Library selection (read-only preview) — single-clicking a script in the library shows its description, tags, and a plain-text summary of each input_variables entry (type, default, choices, description). Nothing here is editable, because there's no QueueEntry yet to write values back into — it isn't queued.
• Stack selection (live, editable) — selecting a queued entry in either stack tab builds the real input widgets from that script's input_variables, current values seeded from that entry's own saved values (falling back to each field's default). Every edit writes straight back into QueueEntry.input_variables and triggers an autosave — there's no separate "Apply" step.

Queue entry notes

An optional short reminder shown to the right of a stack entry's own script name, e.g. FFmpeg/ConvertVideo  — 50% scale pass — purely a memory aid (QueueEntry.note, never read by runner.py) for the real situation where the same script gets queued more than once with different property values (e.g. one ConvertVideo entry at full resolution, another at 50%) and the stack list alone can't tell them apart. Double-click any stack entry, or right-click it > Edit Note..., to set or clear its note; saved immediately, same autosave as everything else in the stack.

Named queues

Beyond the always-on autosave (see Templates and autosave), a queue — the whole BatchQueue: files plus both stacks — can be saved under a name and reloaded later, from the File menu (Save Queue / Save Queue As... / Load Queue... — opens a small searchable picker, queue_picker_dialog.py) or the Saved queue dropdown next to the Batch Queue panel's own header (an editable combo with a substring-filtering QCompleter; picking one loads it immediately, live-write style, no confirmation prompt).

A saved queue is a template file — saving/ loading by name are thin wrappers around model.save_template()/load_template(), the same JSON shape the temp autosave already uses, just under a chosen name (sanitized to a safe filename) instead of always temp_template.json. Loading a queue also becomes the new live working state (mirrored to the temp autosave immediately), and KEY_CURRENT_TEMPLATE persists which name is "current" across restarts.

Module-stack conflict prompt: if the queue being loaded carries a module stack AND the current working queue already has one of its own, loading unconditionally would silently overwrite scripts already queued — so this asks first (Load Both / Files Only / Cancel). Skipped entirely when there's nothing real to lose (either side has no module stack yet).

Module stacks

Just the two script stacks (Pre-Process + Script Queue) — no files at all, and a genuinely separate save slot from Named queues above (its own folder, schema.module_stacks_dir(), never mixed with whole-queue template names even on a name collision). Save/load a module stack from the Modules menu (Save Module Stack / Save Module Stack As... / Load Module Stack...) or the stack right-click (the same three actions, in both the Pre-Process and Script Queue tabs' own context menus — you're already looking at the stack when you want to save what you just built, or swap in a different one, without touching whatever files happen to be queued).

model.save_module_stack()/load_module_stack() write/read just {"pre_process_queue": [...], "script_queue": [...]} — no file_queue key at all, so loading one can never touch the file list. BatchQueue.set_module_stack() applies a loaded stack onto the live working queue, file_queue left exactly as it was. KEY_CURRENT_MODULE_STACK persists which name is "current," the same way KEY_CURRENT_TEMPLATE does for whole queues.

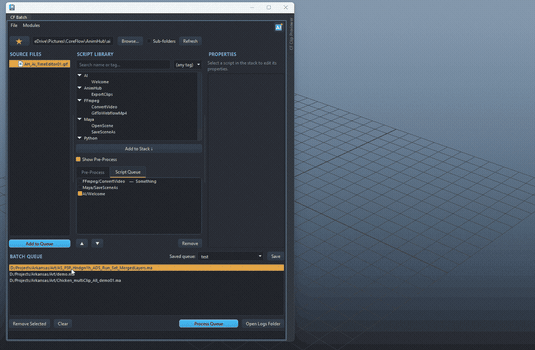

Preview Clips

Batch is deliberately file-agnostic everywhere else in the queue (see Core concept — it never opens, inspects, or assumes anything about a queued file in general), but the context menu is still smart about what a given file actually is: right-click a queued file, and Preview Clips... only appears at all for a .ma/.mb Maya scene — Batch inspects the file's own extension to offer exactly the one action that's actually meaningful for that file type, rather than showing every action on every file regardless of relevance.

Choosing it calls clip_previewer_window.main(scene_path=path) — explicit, repeated user preference: Batch itself never opens the scene, ever, for this. That's a deliberate constraint on CF Clip Previewer (the actual tool), not something worked around in Batch:

• show_scene(scene_path) — if scene_path is already the currently open scene, this is just a normal live view. Otherwise the window switches into external-scene mode: tiles come from the union of two sources, neither one alone being enough — ma_clip_scan.scan_ma_file_for_clips(scene_path) (a plain text scan of the .ma file's own createNode/setAttr lines for CF_ClipName/CF_ClipStart/CF_ClipEnd — real clip names and ranges, no cmds calls, no live CFClip, works even for a scene that's never had a preview generated) and clip_preview.list_cached_clips_for_scene(scene_path) (whatever preview images are already captured on disk, plus a fallback for .mb scenes the text scan can't read at all). Tiles are read-only _CachedOnlyTiles: thumbnail animates on hover if one's cached, "No Preview" otherwise, name + range as a tooltip, no sync/generate/export/play (those all need real clip nodes). A banner names the scene and offers Open This Scene as an explicit, opt-in escape hatch back into full interactivity — never automatic, and still the only way to actually capture a new preview.
• Leaving external-scene mode (Open This Scene, or the real Maya scene changing under it) force-opens and drops straight back into the normal live view for whatever's now open.

ma_clip_scan.py is deliberately narrow, not a general Maya ASCII parser: CF owns the exact schema being read (three attributes Batch itself always writes the same way via CFClip.create()), so this reads Maya's own stable, well-established text convention for a simple createNode network + addAttr/setAttr block — not attempting references, connections, or compound attributes in general, which genuinely would be fragile against Maya version/format drift. Verified against a real Maya-written .ma file, not just an assumed format (see test_ma_clip_scan.py's own end-to-end test).

Run semantics

runner.process_queue(queue, library, progress_callback=None):

1. Every enabled pre-process entry runs once, file_path=None, in stack order.
2. If the file queue is empty but there are enabled per-file entries, those still run once each with file_path=None — useful for scene-agnostic operations.
3. Otherwise, every queued file gets every enabled per-file entry, in order. ScriptSkipRemaining aborts only the current file's remaining entries; the next file still runs in full.

A script returning False fails that step; anything else (True/None/truthy) counts as success. Every run produces a RunResult per step and a structured JSON log (~/Documents/CoreFlow/Batch/Logs/CFBatch_<timestamp>_log.json, opened via Open Logs Folder).

Templates and autosave

The working queue mirrors itself to ~/Documents/CoreFlow/Batch/Templates/temp_template.json on every mutation (add/remove/reorder/enable/property edit) and reloads from it on launch, so the working queue survives a Maya restart. model.save_template()/load_template() work with any path, for named/exported templates.

Storage lives outside UserConfig on purpose: CoreTools' own config layer only round-trips scalars and flat lists cleanly (see core/config.py), and a queue is neither — so the queue, templates, and tag index are plain JSON files, while favorites (a flat list) go through UserConfig as usual.

FFmpeg

ffmpeg_tool.py resolves an ffmpeg.exe path in order: an explicit override (Settings > Batch), a bundled copy next to this package, then whatever ffmpeg resolves to on PATH — raising a clear error only if none of those exist — no hardcoded machine-specific binary path required.

Rescaling (FFmpeg/ConvertVideo's own resolution field, resolve_scale_filter()) accepts several friendly forms, converted to a real -vf scale=... argument: "1920x1080" (converted to ffmpeg's own colon syntax), ffmpeg's native "W:H" directly (-1 on either side preserves aspect ratio, e.g. "1280:-1"), a percentage ("50%" → scale=iw*0.5:ih*0.5), or a full raw filter string (containing "=", passed through unchanged).

Shipped scripts

AI Companion integration

The corner AI button opens the AI Companion, bound with batch (BatchAPI) and a short primer describing the library/queue state. As with every other CF Tools AI integration: the AI proposes Python, you review it, and only after you click Run does anything touch disk.

• list_scripts() / search_scripts(text, tag) / list_tags() / script_info(path) — discovery.
• create_script(name, code, category="AI", tags=None, tool_tip="") — writes a new script file (must define main(args, **kwargs)) and registers it, returning its display path for a follow-up queue_script() call. Always lands in the "AI" category folder by default and always carries an "ai" tag regardless of whatever else tags supplies (or doesn't) — every script this method ever produces stays easy to find/filter/audit later as "AI wrote this."
• queue_script(path, pre_process=False, input_variables=None) / set_script_enabled(index, enabled, pre_process=False) / add_files(paths) / list_queue() / clear_queue().
• ffmpeg_path() — the real ffmpeg.exe CF Batch itself would resolve (Settings > CF Batch override, then a bundled copy, then ffmpeg on PATH — see FFmpeg — ffmpeg_tool.resolve_ffmpeg() under the hood), raising FileNotFoundError with a clear message if nothing resolves. Only valid in the outer script (see below) — never hardcode the bare string "ffmpeg" and assume it's on PATH, it usually isn't.

create_script() doesn't open a new trust boundary either: the code string it writes is part of the same reviewed Python snippet a human already reads and approves before Run — the only real difference from any other curated call is that the result is a reusable file on disk rather than a one-off scene edit. It still can't execute anything on its own until a human runs it from the UI or queues it and clicks Process Queue, exactly like any other library script.
